Orchestrator: #

Employing an Orchestrator has two pitfalls:

• The system becomes slower because too much communication is involved.
• A single Orchestrator may be found to be too large and rigid.

There is one way to counter the first point and more ways to solve the second one:

• Subdivide the Orchestrator by the system’s subdomains, forming Layered Services and minimizing network communication.
• Subdivide the Orchestrator by the type of client, forming Backends for Frontends.
• Add another layer of orchestration.
• Build a Top-Down Hierarchy.

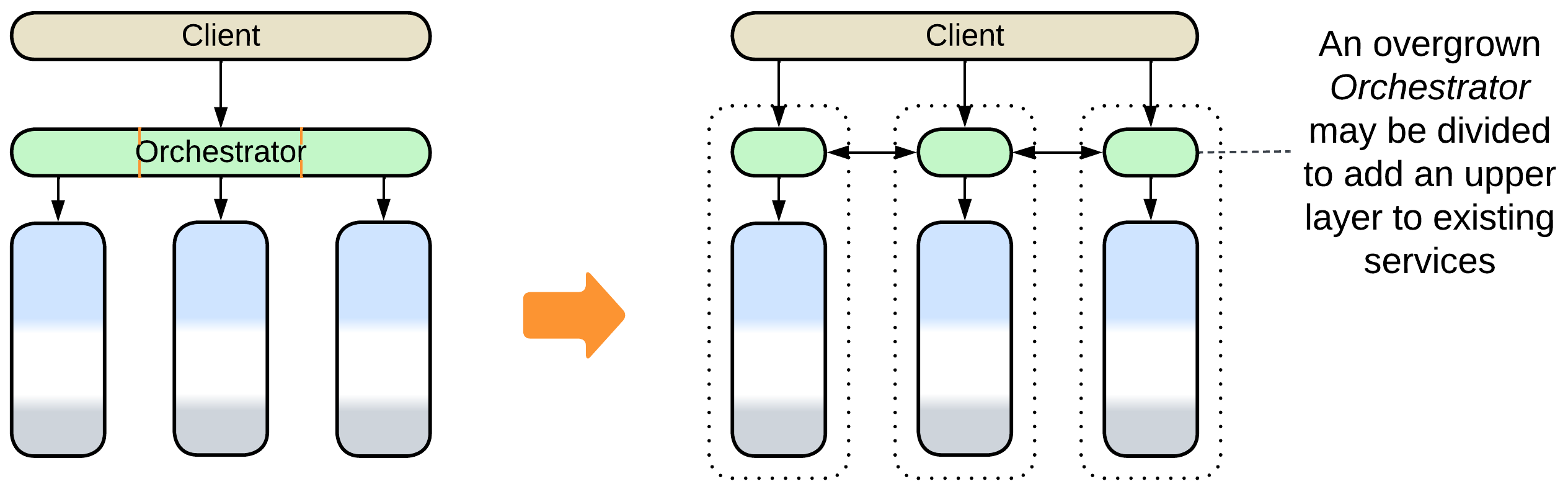

Subdivide to form Layered Services #

Patterns: Orchestrated Three-Layered Services (Layered Services (Services, Layers)).

Goal: simplify the Orchestrator, let the service teams own orchestration, decouple forces for the services, improve performance.

Prerequisite: the high-level (orchestration) logic is weakly coupled between the subdomains.

If the orchestration logic mostly follows the subdomains, it may be possible to subdivide it accordingly. Each service gets a part of the Orchestrator that mostly deals with its subdomain but may call other services when needed. As a result, each service orchestrates every other service. Still, a large part of orchestration becomes internal to the service, meaning that fewer calls over the network are involved.

Pros:

• You subdivide the large Orchestrator codebase.
• Performance is improved.
• The services become more independent in their quality attributes.

Cons:

• You lose the client-facing orchestration team – now each service’s team will need to face its clients.
• Service teams become interdependent (while having equal rights), which may result in slow development and suboptimal decisions.
• There is no way to share code between different use cases or even take a look at all of the scenarios at once.

Further steps:

• CQRS Views [MP] or a Query Service [MP] help a service access and join data that belongs to other services, further reducing the need for interservice communication.

Subdivide to form Backends for Frontends #

Patterns: Backends for Frontends, Orchestrator.

Goal: simplify the Orchestrator, employ a team per client type, decouple qualities for clients.

Prerequisite: clients vary in workflows and forces.

When use cases for clients vary, it makes sense for each kind of client to have a dedicated Orchestrator.

Pros:

• The smaller Orchestrators are independent in qualities, technologies and teams.
• The smaller Orchestrators are … well, smaller.

Cons:

• There is no good way to share code between the Orchestrators.

Further steps:

• You may want to add client-specific Proxies and, maybe, co-locate them with the Orchestrators to avoid the extra network hop.
• Adding another shared Orchestrator below the ones dedicated to clients creates a place for sharing functionality among the Orchestrators.
• If you are running Microservices over a Service Mesh, Sidecars [DDS] may help to share generic code.

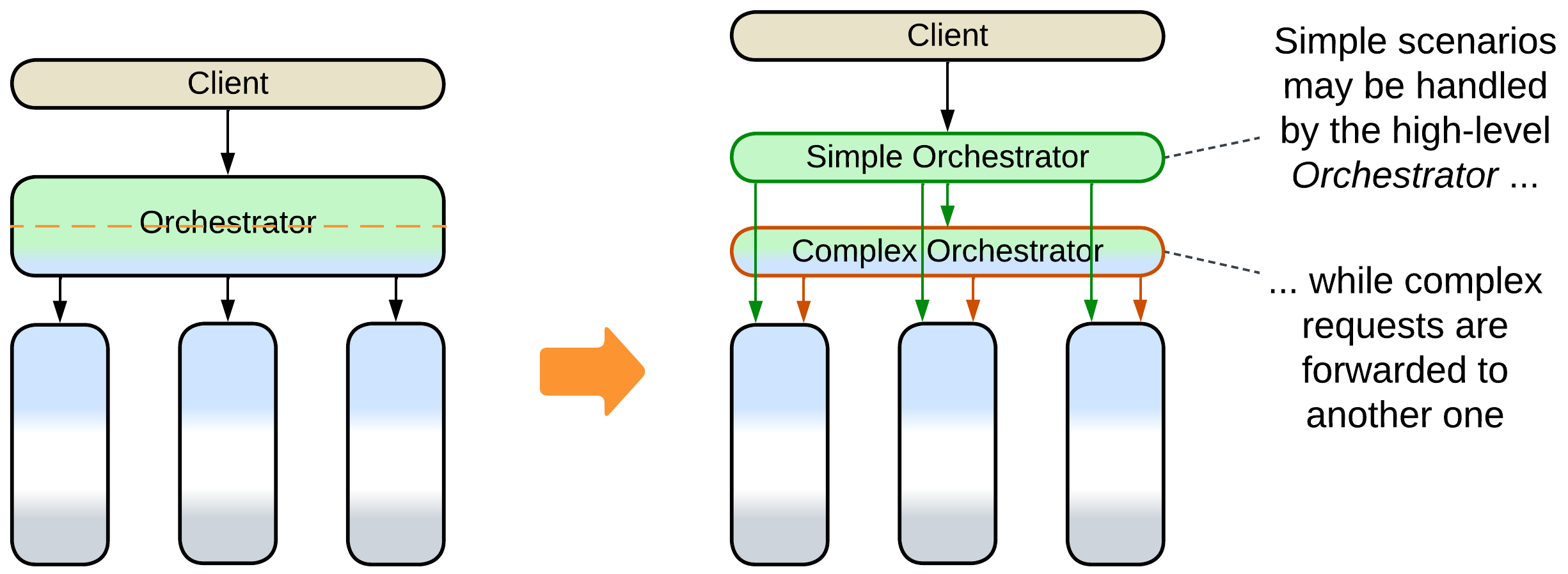

Add a layer of orchestration #

Patterns: Orchestrator, Layers.

Goal: implement simple use cases quickly, while still supporting complex ones.

Prerequisite: use cases vary in complexity.

You may use two or three orchestration frameworks (engines) which differ in complexity. A simple declarative tool may be enough for the majority of user requests, reverting to custom-tailored code for rare complex cases.

Pros:

• Simple scenarios are easy to write.
• You retain good flexibility with hand-written code when it is needed.

Cons:

• Requires learning multiple technologies.
• More components mean more failures and more administration.
• Performance of complex requests may suffer from more indirection.

Further steps:

• Divide one or more of the resulting orchestration layers to form Layered Services, Backends for Frontends, Hierarchy, or Cell-Based Architecture.

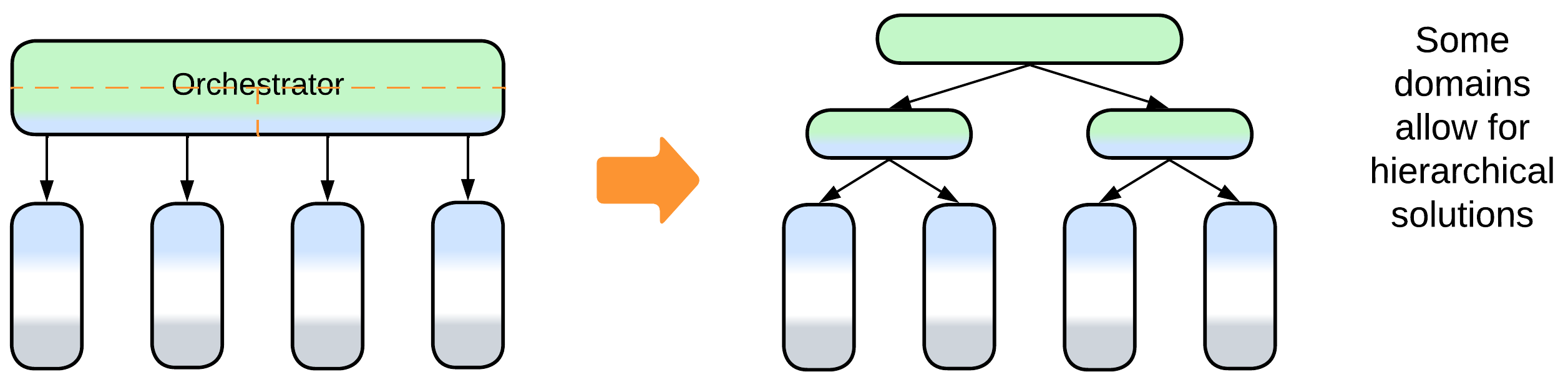

Form a hierarchy #

Patterns: Top-Down Hierarchy (Hierarchy).

Goal: simplify the Orchestrator and, if possible, the services.

Prerequisite: the domain is hierarchical.

If an Orchestrator becomes too complex, some domains (e.g. IIoT or telecom) encourage using a tree of Orchestrators, with each layer taking care of one aspect of the domain, serving the most generic functionality at the root.

Pros:

• Multiple specialized teams and technologies.
• Small codebase per team.
• Reasonable testability.
• Some decoupling of quality attributes.

Cons:

• Hard to debug.
• Poor latency in global scenarios unless several layers of the hierarchy are colocated.
